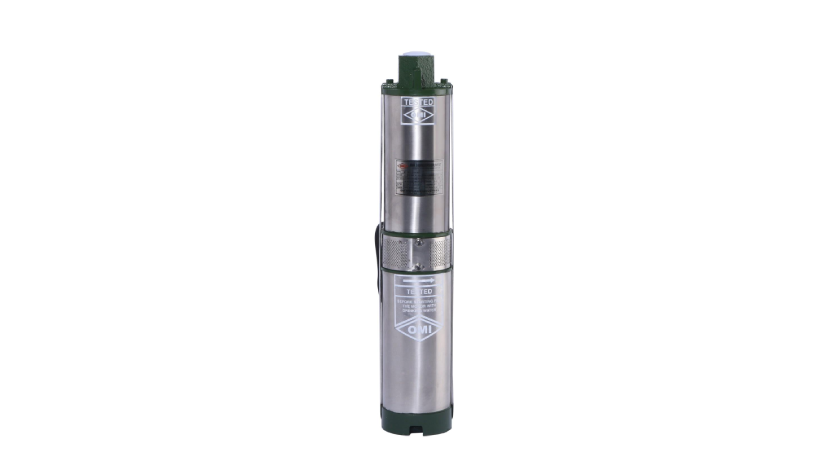

Vertical Open Well Submersible Pumps
OMI Vertical Openwell Submersible pump is a product easy to install, repair and dismantle with noiseless operations and minimal power consumption that dynamically balance the rotating part. These pumps are developed and manufactured by the continuous efforts and innovation of our R&D Team with prime experience in manufacturing pumps for the past 50 years.
| Power Range | 0.5 HP – 2 HP |
| Phase / Voltage Range | Single-phase 200-240V, 50Hz, A.C Supply |
| Maximum total head | 75 meters |
| Maximum flow rate | 7500 lph |
| Nominal outlet size in inches | 1.25”, 1.5”( 32, 40 mm) |
| Body | Stainless Steel 202 / 304 |
| Rotor | Aluminum Pressure Die Casting |
| Bush | Lead Tin Bronze 4 |
| Bearing | Stainless Steel with Carbon |
Applications
| Material of Construction of Motor | |
| Part Name | Material |
| Stator Shell | SS 304 / SS 202 |
| Impeller | Noryl |
| Diffuser | Noryl |
| Shaft | Stainless Steel 410 |
| Journal Bearings | Leaded Bronze |
| Thrust Assembly | Leaded Bronze and Composites / Stainless Steel 420 with Graphite Carbon |
| Diffuser Shell | SS 304 / SS 202 |
| Windings | Poly Wrap Copper Conductor Wires |
