Foot Valves & Check Valves

[heading_title_subtitle title=”OUR PRODUCTS” subtitle=”Foot Valves & Check Valves” title_color=”dark_title” subtitle_color=”dark_subtitle” description_color=”dark_description” align_title=”text-left”]

OMI energy-efficient Frictionless Footvalves and Check valves is a product developed by the continuous efforts and innovation of our R&D Team with prime experience in manufacturing pumps for the past 50 years.  These pumps are manufactured with utmost care and perfection to give a trouble-free and efficient performance like our virtuous customer service.

Product Specifications

Nominal Bore Size 1.25”, 1.5”,2”,2.5”,3”&4”.
Body Test Pressure 0.5 MPa
Seal Test Pressure 0.02 MPa
Liquid Clear Cold Water

Salient Features

[mt_icon_list_item list_icon=”fa fa-check-square-o” list_icon_size=”15″ list_icon_margin=”10″ list_spacing=”3px 3px 5px 0px” list_icon_color=”#ce2528″ list_icon__hover_color=”#ce2528″ list_icon_title=”Suction flow is almost straight hence frictional loss is minimal.” list_icon_title_size=”15″ list_icon_title_color=”#686868″ list_icon_title_color_hover=”#686868″][mt_icon_list_item list_icon=”fa fa-check-square-o” list_icon_size=”15″ list_icon_margin=”10″ list_spacing=”3px 3px 5px 0px” list_icon_color=”#ce2528″ list_icon__hover_color=”#ce2528″ list_icon_title=”It increases water discharge up to 20% and reduces power consumption up to 10%.” list_icon_title_size=”15″ list_icon_title_color=”#686868″ list_icon_title_color_hover=”#686868″][mt_icon_list_item list_icon=”fa fa-check-square-o” list_icon_size=”15″ list_icon_margin=”10″ list_spacing=”3px 3px 5px 0px” list_icon_color=”#ce2528″ list_icon__hover_color=”#ce2528″ list_icon_title=”Synthetic rubber flap completely prevents water leakage in the foot valve/reflux valves.” list_icon_title_size=”15″ list_icon_title_color=”#686868″ list_icon_title_color_hover=”#686868″][mt_icon_list_item list_icon=”fa fa-check-square-o” list_icon_size=”15″ list_icon_margin=”10″ list_spacing=”3px 3px 5px 0px” list_icon_color=”#ce2528″ list_icon__hover_color=”#ce2528″ list_icon_title=”Compact and easy to install.” list_icon_title_size=”15″ list_icon_title_color=”#686868″ list_icon_title_color_hover=”#686868″][mt_icon_list_item list_icon=”fa fa-check-square-o” list_icon_size=”15″ list_icon_margin=”10″ list_spacing=”3px 3px 5px 0px” list_icon_color=”#ce2528″ list_icon__hover_color=”#ce2528″ list_icon_title=”A specially designed ring washer prevents breakages.” list_icon_title_size=”15″ list_icon_title_color=”#686868″ list_icon_title_color_hover=”#686868″][mt_icon_list_item list_icon=”fa fa-check-square-o” list_icon_size=”15″ list_icon_margin=”10″ list_spacing=”3px 3px 5px 0px” list_icon_color=”#ce2528″ list_icon__hover_color=”#ce2528″ list_icon_title=”Easily replaceable parts.” list_icon_title_size=”15″ list_icon_title_color=”#686868″ list_icon_title_color_hover=”#686868″]

Body

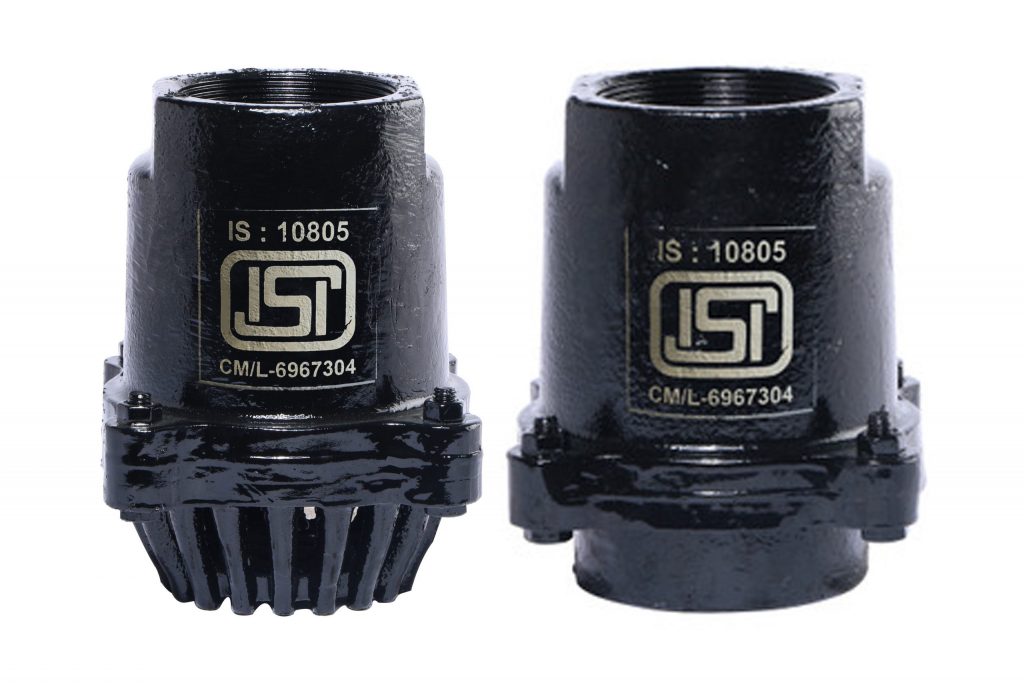

The body is made of graded cast iron. Flange type foot valves flange holes are as per BIS standard IS: 10805. Screw type and flange type foot valves, check valves threading are as per IS: 554. Foot valves have a cast iron strainer with cored slots and an adequate straining area.

Flap

The sealing is effected by means of a good quality rubber flap fitted with cast iron semicircular disc plates with appropriate weight to give perfect sealing of water.

Paint

Each valve has a coating of black paint conforming to IS: 158. This coating does not impart any taste or smell to water and it avoids rust formation.

Applications

[mt_icon_list_item list_icon=”fa fa-check-square-o” list_icon_size=”15″ list_icon_margin=”10″ list_spacing=”3px 3px 5px 0px” list_icon_color=”#ce2528″ list_icon__hover_color=”#ce2528″ list_icon_title=”Used in all pipelines to reduce friction losses and improve discharge and reduce power consumption” list_icon_title_size=”15″ list_icon_title_color=”#686868″ list_icon_title_color_hover=”#686868″]

Material of Construction

Material of Construction of Valve
Part Name Material
Body Cast Iron
Flap Nitrile Butadiene Rubber
Paint Antirust Black Paint
Fasteners Mild Steel
