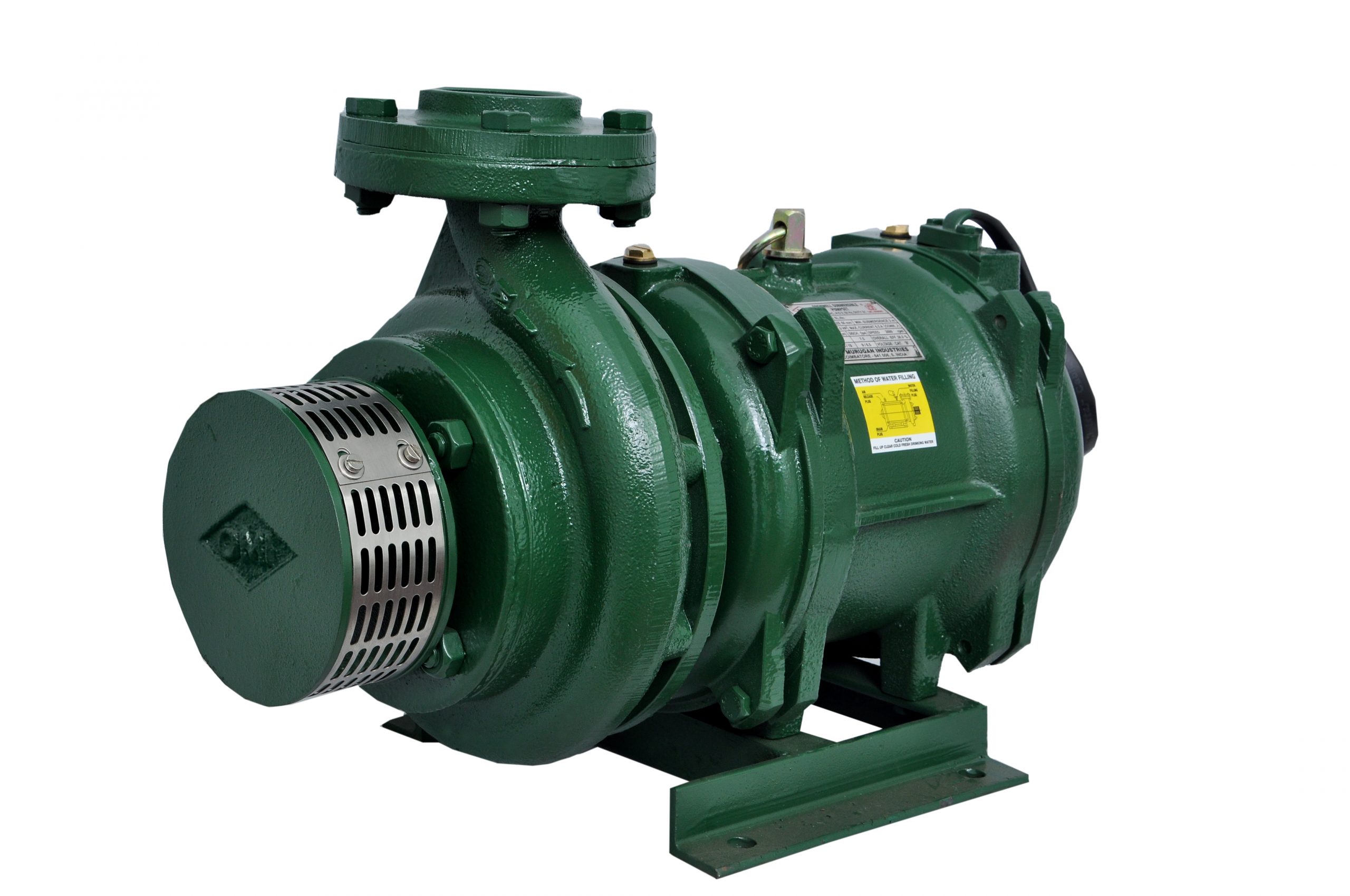

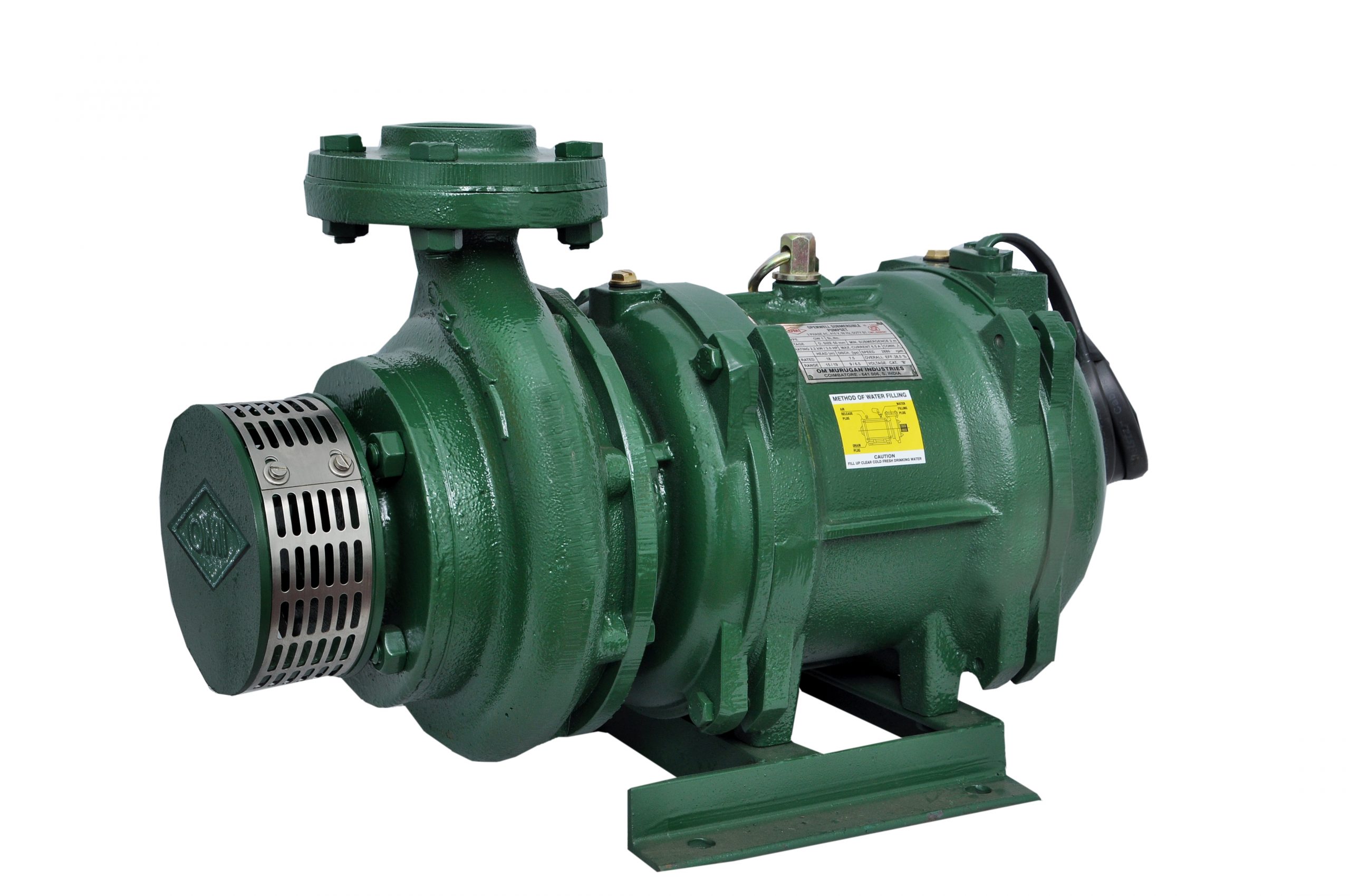

Horizontal Open Well Submersible Pumps-MAGNUM
OMI Horizontal Submersible pumps are highly energy-efficient products that are lightweight and easy to install with noiseless operations, they are specially designed to withstand high axial thrust load. Energy-efficient. These pumps are developed and manufactured by the continuous efforts and innovation of our R&D Team with prime experience in manufacturing pumps for the past 50 years.
| Power Range | 3 HP – 25 HP |
| Phase / Voltage Range | 80- 240 V, Single Phase, 50 Hz, A.C. Supply 350- 415 V, Three Phase, 50 Hz, A.C. Supply 400 meters |
| Maximum total head | 54 meters |
| Maximum flow rate | 96000 lph |
| Nominal outlet size | 2”,2.5”3”,4”(50,65,80,100 mm) |
| Rotor | Copper Brazed Rotor |
| Bush | LTB 4 Bush / Carbon |
| Bearing | SS with Carbon |
| Impeller | CI |
| Casing | CI |
| Body | CI |
Applications
| Model description | Motor | Pump Size | |
| SMART SERIES | Hp | Kw | Delivery |
| Magnum 3/50-22 Al | 3 | 2.2 | 50 mm (2″) |
| Magnum 3/50-27 Al | 3 | 2.2 | 50 mm (2″) |
| Magnum 3/65-18 Al | 3 | 2.2 | 65 mm (2.5″) |
| Magnum 3/75-15 Al | 3 | 2.2 | 80 mm (3″) |
| Magnum 3/100-12 Al | 3 | 2.2 | 100 mm (4″) |
| Magnum 3/50-22 Cu | 3 | 2.2 | 50 mm (2″) |
| Magnum 3/50-27 Cu | 3 | 2.2 | 50 mm (2″) |
| Magnum 3/65-18 Cu | 3 | 2.2 | 65 mm (2.5″) |
| Magnum 3/75-15 Cu | 3 | 2.2 | 80 mm (3″) |
| Magnum 3/100-12 Cu | 3 | 2.2 | 100 mm (4″) |
| Magnum 5/50-30 Al | 5 | 3.7 | 50 mm (2″) |
| Magnum 5/50-34 Al | 5 | 3.7 | 50 mm (2″) |
| Magnum 5/50-42 Al | 5 | 3.7 | 50 mm (2″) |
| Magnum 5/65-26 Al | 5 | 3.7 | 65 mm (2.5″) |
| Magnum 5/75-22 Al | 5 | 3.7 | 80 mm (3″) |
| Magnum 5/100-15 Al | 5 | 3.7 | 100 mm (4″) |
| Magnum 5/50-30 Cu | 5 | 3.7 | 50 mm (2″) |
| Magnum 5/50-34 Cu | 5 | 3.7 | 50 mm (2″) |
| Magnum 5/50-42 Cu | 5 | 3.7 | 50 mm (2″) |
| Magnum 5/65-26 Cu | 5 | 3.7 | 65 mm (2.5″) |
| Magnum 5/75-22 Cu | 5 | 3.7 | 80 mm (3″) |
| Magnum 5/100-15 Cu | 5 | 3.7 | 100 mm (4″) |
| Magnum 7.5/50-42 Al | 7.5 | 5.5 | 50 mm (2″) |
| Magnum 7.5/50-46 Al | 7.5 | 7.5 | 50 mm (2″) |
| Magnum 7.5/65-36 Al | 7.5 | 5.5 | 65 mm (2.5″) |
| Magnum 7.5/75-27 Al | 7.5 | 5.5 | 80 mm (3″) |
| Magnum 7.5/100-24 Al | 7.5 | 5.5 | 100 mm (4″) |
| Magnum 7.5/50-42 Cu | 7.5 | 5.5 | 50 mm (2″) |
| Magnum 7.5/50-46- Cu | 7.5 | 5.5 | 50 mm (2″) |
| Magnum 7.5/65-36 Cu | 7.5 | 5.5 | 65 mm (2.5″) |
| Magnum 7.5/75-27 Cu | 7.5 | 5.5 | 80 mm (3″) |
| Magnum 7.5/100-24 Cu | 7.5 | 5.5 | 100 mm (4″) |
| Magnum 7.5/50-50 Cu | 7.5 | 5.5 | 50 mm (2″) |
| Magnum 10/50-54 Cu | 10 | 7.5 | 50 mm (2″) |
| Magnum 10/65-44 Cu | 10 | 7.5 | 65 mm (2.5″) |
| Magnum 10/75-34 Cu | 10 | 7.5 | 80 mm (3″) |
| Magnum 10/100-27 Cu | 10 | 7.5 | 100 mm (4″) |
Heavy-Duty Magnum Horizontal Open Well Submersible Pumps for High-Volume Water Supply
OMI Magnum Horizontal Open Well Submersible Pumps are designed to deliver high-capacity and energy-efficient water pumping for agriculture, rural water supply, and commercial applications. Built with a water-cooled rewindable motor and robust cast iron construction, these pumps provide reliable performance, smooth operation, and long service life. Their dynamically balanced rotating parts reduce vibration and ensure quiet operation, while the sturdy design helps withstand high axial thrust and wide voltage fluctuations. Suitable for open wells, canals, farms, sprinkler and drip irrigation systems, fountains, and large water distribution projects, the Magnum Series offers consistent water flow with minimal maintenance, making it an ideal solution for demanding water pumping requirements.
FAQ
What is the Magnum Horizontal Open Well Submersible Pump used for?
The Magnum Series is used for agricultural irrigation, open wells, canals, rural water supply, fountains, sprinkler systems, drip irrigation, and commercial water pumping applications.
What are the key benefits of the Magnum Series pump?
The pump offers high water discharge, energy-efficient performance, quiet operation, durable construction, easy installation, and reliable performance under varying voltage conditions.
Can the Magnum Series pump be used for continuous operation?
Yes. It is designed for continuous and heavy-duty water pumping, making it suitable for demanding agricultural and commercial applications.
Where can the Magnum Series pump be installed?
It is suitable for open wells, agricultural fields, canals, farms, irrigation systems, fountains, and rural water supply projects that require high-capacity water pumping.
How do I maintain the Magnum Horizontal Open Well Submersible Pump?
Inspect the pump regularly, keep the open well free from debris, check electrical connections, and follow the recommended maintenance schedule to ensure efficient operation and extend the pump’s service life.
