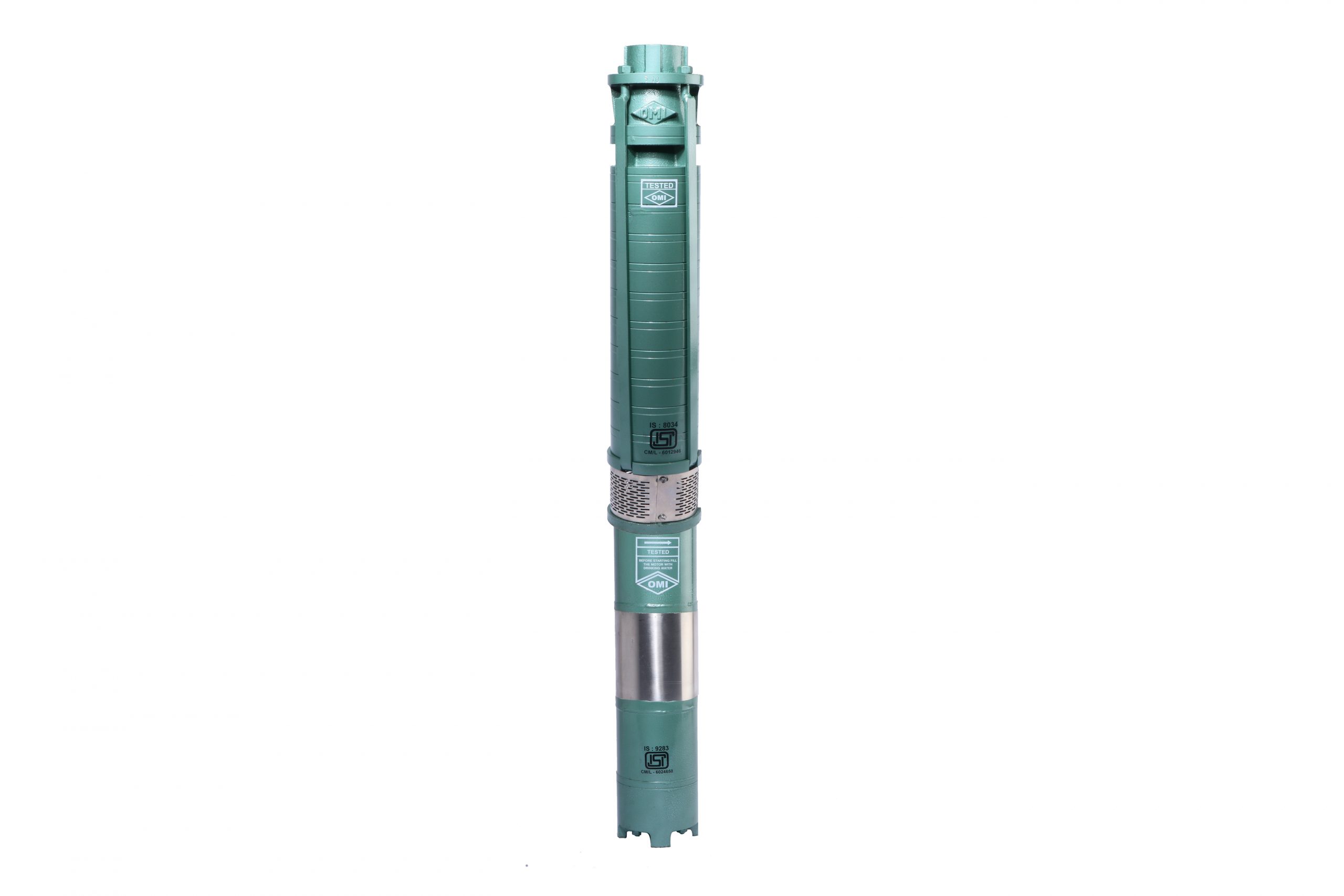

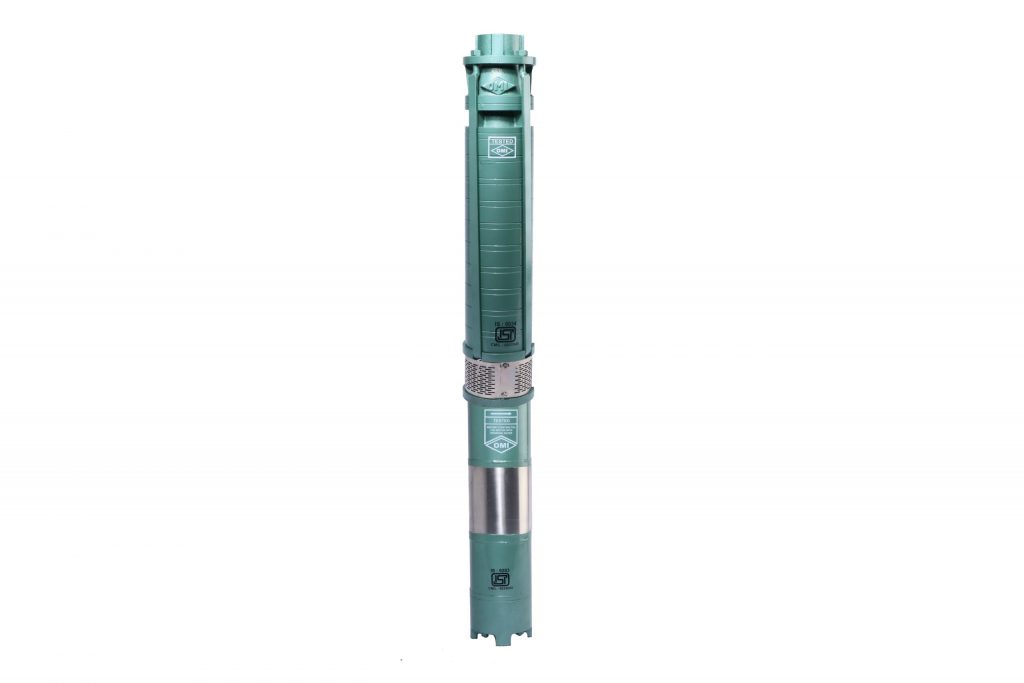

200 mm 8” Borewell Submersible Pumps Platinum Series
OMI 200 mm 8” Borewell Submersible pumps are highly energy-efficient products that are lightweight and easy to install with noiseless operations, they are specially designed to withstand high axial thrust load. These pumps are developed and manufactured by the continuous efforts and innovation of our R&D Team with prime experience in manufacturing pumps for the past 50 years.
| Power Range | 12.5 HP – 60 HP |
| Phase / Voltage Range | 350- 415 V, Three Phase, 50 Hz, A.C. Supply |
| Maximum total head | 240 meter |
| Maximum flow rate | 126000 lph |
| Maximum Outer diameter in mm | 187 mm |
| Nominal outlet size in inches | 4” (100 mm) |
| Rotor | Copper Brazed Rotor |
| Bush | LTB 4 Bush / Carbon |
| Bearing | Carbon Pad with Segment Bearing |
| Impeller | SS |
| Casing | SS / CI |
Applications
| Material of Construction of Pump | |
| Part Name | Material |
| Check Valve housing | CI |
| Check Valve Seat | SG Iron |
| Diffuser Chamber | SS 304 & Cast Iron |
| Impeller | Stainless Steel & Gunmetal |
| Diffuser | Noryl, Cast Iron, SS |
| Suction Inter Connector | CI |
| Inlet Screen | SS 304 / SS 202 |
| Pump Shaft | SS 410 / SS 304 |
| Cable Guard | SS 304 / SS 202 |
| Coupling | SS 410 / SS 304 |
| Material of Construction of Motor | |
| Part Name | Material |
| Stator Shell | Stainless Steel 304 202 Half Steel Body ( SS MS ) |
| Shaft | Stainless Steel 410 |
| Journal Bearings | Leaded Tin Bronze |
| Thrust Assembly | Stainless Steel 420 and Graphite Carbon Segment Type Thrust Bearing. |
| Base, Oil Seal, Lower and Upper Housing | Cast Iron and SS |
