Horizontal Open Well Submersible Pumps

[heading_title_subtitle title=”OUR PRODUCTS” subtitle=”Horizontal Open Well Submersible Pumps” title_color=”dark_title” subtitle_color=”dark_subtitle” description_color=”dark_description” align_title=”text-left”]

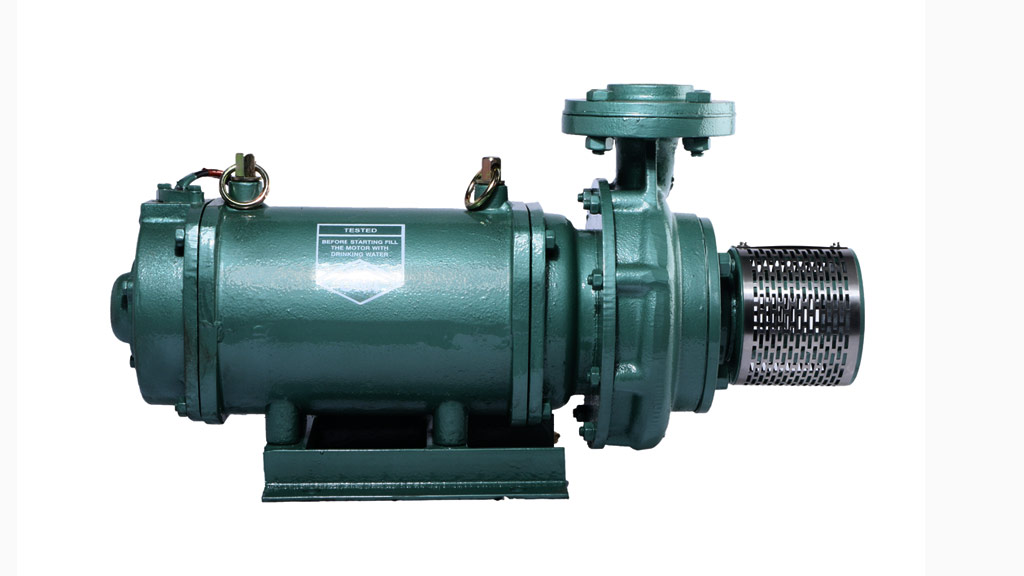

OMI Horizontal Submersible pumps are highly energy-efficient products that are lightweight and easy to install with noiseless operations, they are specially designed to withstand high axial thrust load. Energy-efficient. These pumps are developed and manufactured by the continuous efforts and innovation of our R&D Team with prime experience in manufacturing pumps for the past 50 years.

Product Specifications

Power Range 3 HP – 10 HP
Phase / Voltage Range

180- 240 V, Single Phase, 50 Hz, A.C. Supply

350- 415 V, Three Phase, 50 Hz, A.C. Supply
Maximum total head 54 meters
Maximum flow rate 96000 lph
Nominal outlet 2”,2.5”3”,4”(50,65,80,100 mm)
  Rotor    Copper Brazed Rotor
  Bush    LTB 4 Bush / Carbon
  Bearing    SS with Carbon
  Impeller   CI
  Casing   CI
Body   CI

Salient Features

[mt_icon_list_item list_icon=”fa fa-check-square-o” list_icon_size=”15″ list_icon_margin=”10″ list_spacing=”3px 3px 5px 0px” list_icon_color=”#ce2528″ list_icon__hover_color=”#ce2528″ list_icon_title=”Easy to Install” list_icon_title_size=”15″ list_icon_title_color=”#686868″ list_icon_title_color_hover=”#686868″][mt_icon_list_item list_icon=”fa fa-check-square-o” list_icon_size=”15″ list_icon_margin=”10″ list_spacing=”3px 3px 5px 0px” list_icon_color=”#ce2528″ list_icon__hover_color=”#ce2528″ list_icon_title=”Noiseless Operations.” list_icon_title_size=”15″ list_icon_title_color=”#686868″ list_icon_title_color_hover=”#686868″][mt_icon_list_item list_icon=”fa fa-check-square-o” list_icon_size=”15″ list_icon_margin=”10″ list_spacing=”3px 3px 5px 0px” list_icon_color=”#ce2528″ list_icon__hover_color=”#ce2528″ list_icon_title=”Wet Type, Water Cooled, Rewindable Motors.” list_icon_title_size=”15″ list_icon_title_color=”#686868″ list_icon_title_color_hover=”#686868″][mt_icon_list_item list_icon=”fa fa-check-square-o” list_icon_size=”15″ list_icon_margin=”10″ list_spacing=”3px 3px 5px 0px” list_icon_color=”#ce2528″ list_icon__hover_color=”#ce2528″ list_icon_title=”Suitable for wide Voltage fluctuations” list_icon_title_size=”15″ list_icon_title_color=”#686868″ list_icon_title_color_hover=”#686868″][mt_icon_list_item list_icon=”fa fa-check-square-o” list_icon_size=”15″ list_icon_margin=”10″ list_spacing=”3px 3px 5px 0px” list_icon_color=”#ce2528″ list_icon__hover_color=”#ce2528″ list_icon_title=”Can be easily dismantled and repaired.” list_icon_title_size=”15″ list_icon_title_color=”#686868″ list_icon_title_color_hover=”#686868″][mt_icon_list_item list_icon=”fa fa-check-square-o” list_icon_size=”15″ list_icon_margin=”10″ list_spacing=”3px 3px 5px 0px” list_icon_color=”#ce2528″ list_icon__hover_color=”#ce2528″ list_icon_title=”Long-life due to sturdy construction.” list_icon_title_size=”15″ list_icon_title_color=”#686868″ list_icon_title_color_hover=”#686868″][mt_icon_list_item list_icon=”fa fa-check-square-o” list_icon_size=”15″ list_icon_margin=”10″ list_spacing=”3px 3px 5px 0px” list_icon_color=”#ce2528″ list_icon__hover_color=”#ce2528″ list_icon_title=”Can be used as a submersible pump in the open well maintenance open well discharge.” list_icon_title_size=”15″ list_icon_title_color=”#686868″ list_icon_title_color_hover=”#686868″][mt_icon_list_item list_icon=”fa fa-check-square-o” list_icon_size=”15″ list_icon_margin=”10″ list_spacing=”3px 3px 5px 0px” list_icon_color=”#ce2528″ list_icon__hover_color=”#ce2528″ list_icon_title=”Dynamically balanced rotating parts.” list_icon_title_size=”15″ list_icon_title_color=”#686868″ list_icon_title_color_hover=”#686868″]

Applications

[mt_icon_list_item list_icon=”fa fa-check-square-o” list_icon_size=”15″ list_icon_margin=”10″ list_spacing=”3px 3px 5px 0px” list_icon_color=”#ce2528″ list_icon__hover_color=”#ce2528″ list_icon_title=”Agricultural Irrigation” list_icon_title_size=”15″ list_icon_title_color=”#686868″ list_icon_title_color_hover=”#686868″][mt_icon_list_item list_icon=”fa fa-check-square-o” list_icon_size=”15″ list_icon_margin=”10″ list_spacing=”3px 3px 5px 0px” list_icon_color=”#ce2528″ list_icon__hover_color=”#ce2528″ list_icon_title=”Drip” list_icon_title_size=”15″ list_icon_title_color=”#686868″ list_icon_title_color_hover=”#686868″][mt_icon_list_item list_icon=”fa fa-check-square-o” list_icon_size=”15″ list_icon_margin=”10″ list_spacing=”3px 3px 5px 0px” list_icon_color=”#ce2528″ list_icon__hover_color=”#ce2528″ list_icon_title=”Civil water supply” list_icon_title_size=”15″ list_icon_title_color=”#686868″ list_icon_title_color_hover=”#686868″][mt_icon_list_item list_icon=”fa fa-check-square-o” list_icon_size=”15″ list_icon_margin=”10″ list_spacing=”3px 3px 5px 0px” list_icon_color=”#ce2528″ list_icon__hover_color=”#ce2528″ list_icon_title=”Industrial & Rural water supply” list_icon_title_size=”15″ list_icon_title_color=”#686868″ list_icon_title_color_hover=”#686868″][mt_icon_list_item list_icon=”fa fa-check-square-o” list_icon_size=”15″ list_icon_margin=”10″ list_spacing=”3px 3px 5px 0px” list_icon_color=”#ce2528″ list_icon__hover_color=”#ce2528″ list_icon_title=”Water Circulation” list_icon_title_size=”15″ list_icon_title_color=”#686868″ list_icon_title_color_hover=”#686868″][mt_icon_list_item list_icon=”fa fa-check-square-o” list_icon_size=”15″ list_icon_margin=”10″ list_spacing=”3px 3px 5px 0px” list_icon_color=”#ce2528″ list_icon__hover_color=”#ce2528″ list_icon_title=”High Rise Buildings.” list_icon_title_size=”15″ list_icon_title_color=”#686868″ list_icon_title_color_hover=”#686868″][mt_icon_list_item list_icon=”fa fa-check-square-o” list_icon_size=”15″ list_icon_margin=”10″ list_spacing=”3px 3px 5px 0px” list_icon_color=”#ce2528″ list_icon__hover_color=”#ce2528″ list_icon_title=”Pressure boosting.” list_icon_title_size=”15″ list_icon_title_color=”#686868″ list_icon_title_color_hover=”#686868″][mt_icon_list_item list_icon=”fa fa-check-square-o” list_icon_size=”15″ list_icon_margin=”10″ list_spacing=”3px 3px 5px 0px” list_icon_color=”#ce2528″ list_icon__hover_color=”#ce2528″ list_icon_title=”Sprinklers and Water Fountains” list_icon_title_size=”15″ list_icon_title_color=”#686868″ list_icon_title_color_hover=”#686868″][mt_icon_list_item list_icon=”fa fa-check-square-o” list_icon_size=”15″ list_icon_margin=”10″ list_spacing=”3px 3px 5px 0px” list_icon_color=”#ce2528″ list_icon__hover_color=”#ce2528″ list_icon_title=”Mining” list_icon_title_size=”15″ list_icon_title_color=”#686868″ list_icon_title_color_hover=”#686868″]

Material of Construction

Material of Construction of Motor
Part Name Material
Pump Volute Casing Cast Iron
Stator Shell Cast Iron
Impeller Cast Iron
Shaft SS 410
Journal Bearings Leaded Tin Bronze
Thrust Assembly Stainless Steel 420 with Graphite Carbon
