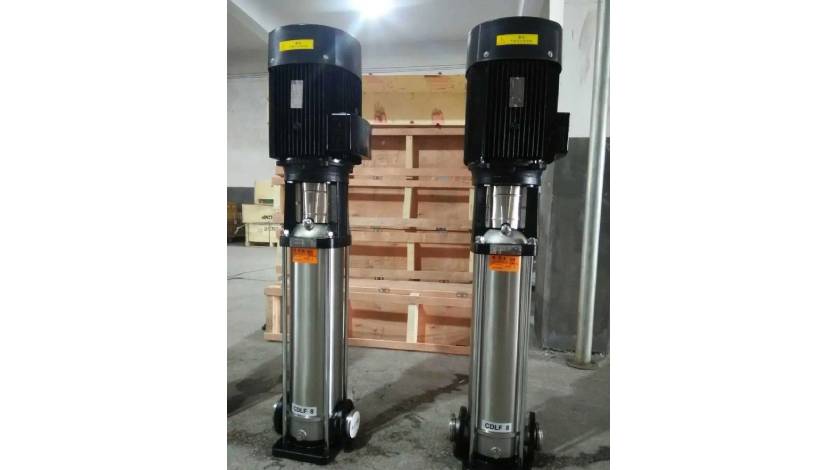

Vertical Inline Pumps

OMI Vertical Inline pump is a product developed by the continuous efforts and innovation of our R&D Team with prime experience in manufacturing pumps for the past 50 years.  These pumps are manufactured with utmost care and perfection to give a trouble-free and efficient performance like our virtuous customer service.

Power Range

0.5 HP – 3 HP Single Phase

0.5 Hp – 20 HP Three Phase

Phase / Voltage Range

200 – 240V, Single Phase,50 Hz, A.C. Supply

380 – 415V, Three Phase, 50 Hz, A.C. Supply

Maximum total head 200 meter
Maximum flow rate 120000 lph
Impellers / Diffusers Stainless Steel 304
Winding ‘F’ Class Insulation Copper Wire
Bearing Double  Sealed Ball Bearing

Stainless Steel impellers, shaft and stage casing.

Cartridge-type mechanical seal for easy maintenance.

Enhanced Hydraulic Efficiency

Low noise

Easy to install and maintain

F class insulation for motors.

Long Life due to sturdy materials construction.


Pressure Boosting

Residential Buildings





Sprinkler System

RO ( Reverse Osmosis ) System

Boiler Feeding

Material of Construction of Pumpset
Part Name Material
Outer Casing SS 304
Impeller SS 304/ SS 316 L
Diffuser SS 304/ SS 316 L
Shaft SS 304/ SS 316
Mechanical Seal Cartridge Type
Suction/ Delivery SS 304/ SS 316L / Cast Iron FG 260
Motor Housing Cast Iron FG 260
