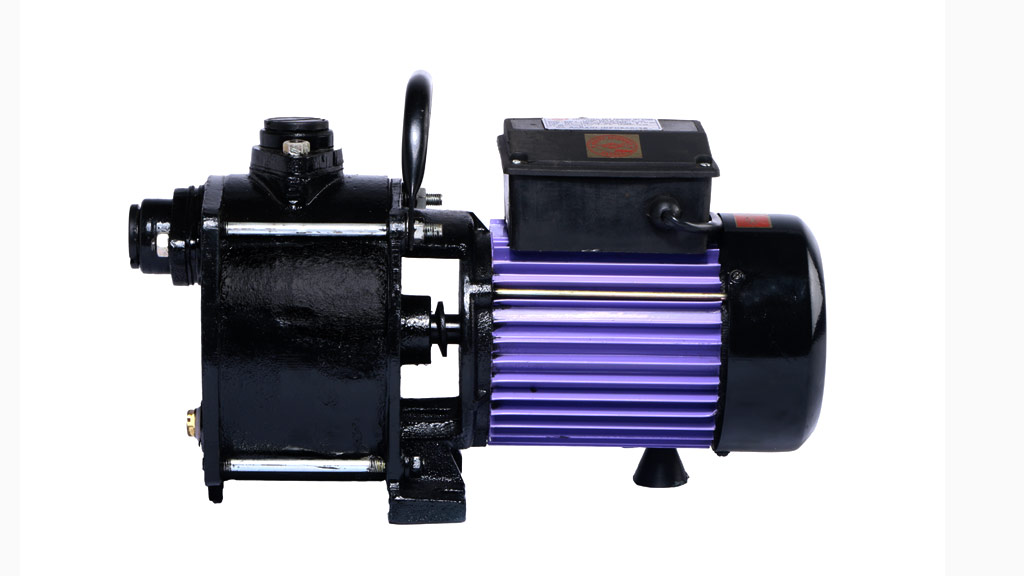

Shallow Well Pumps Topaz Series

OMI Shallow well Pump is a product fitted with Thermal Overload Protector (TOP) to prevent burning with high grade ‘F’ class enameled copper wires that are suitable for wide Voltage fluctuations with minimal power consumption pumps that dynamically balance the rotating parts. These pumps are developed and manufactured by the continuous efforts and innovation of our R&D Team with prime experience in manufacturing pumps for the past 50 years.

Power Range 0.5HP-1 HP
Phase / Voltage Range Single-phase 200-240V, 50Hz, A.C Supply,
Maximum total head 40 meters
Maximum flow rate 3750 lph
Suction & Delivery 1” x 1” , 1.25” x 1 (25×25, 32×25 mm)
Body Cast Iron /  Aluminum
Winding ‘F’ Class Insulation Copper Wire
Shaft Stainless Steel 410 / EN 8
Motor Protector Fitted With TOP
Bearing Double  Sealed Ball Bearing
Impeller Cast Iron/ Noryl

Good suction lift and operating pressure.

Fitted with Thermal Overload Protector (TOP) to prevent burning.

Noiseless Operations.

High grade ‘F’ class enameled copper wires

Suitable for wide Voltage fluctuations

Minimal power consumption

Can be easily dismantled and repaired.

Sturdy and Compact Design.

Pre Lubricated Double Sealed Precision Ball Bearing.

Dynamically balanced rotating parts.

Applications

Home

Water Circulation

Pressure Boosting.

Sprinklers and Water Fountains

Material of Construction
Part Name Material
Pump Casing Cast Iron/ Stainless Steel
Motor Frame Aluminum
Impeller Noryl / Stainless Steel/ Cast Iron
Shaft Stainless Steel 410 / EN 8
Sealing Mechanical Seal (Carbon & Ceramic)
