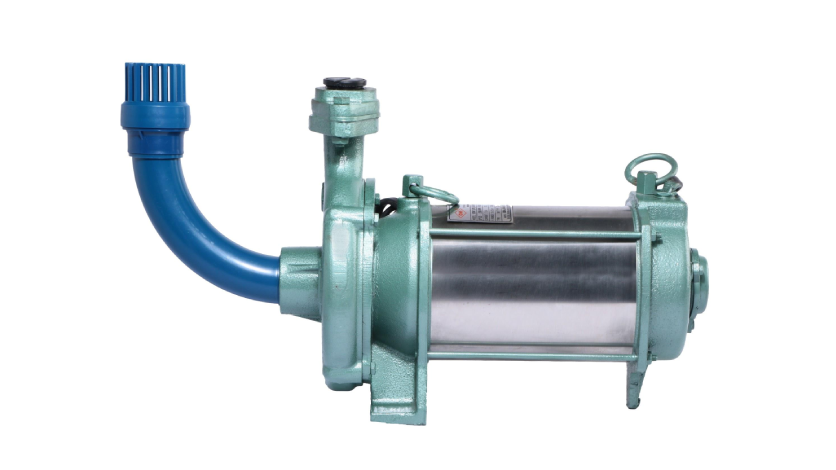

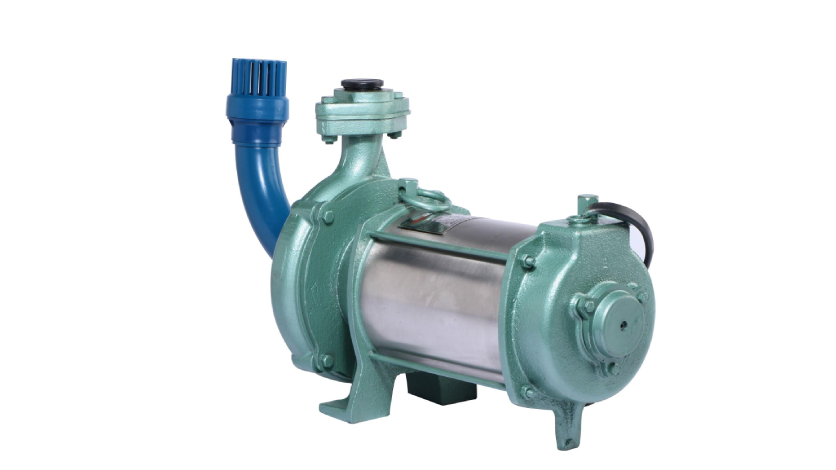

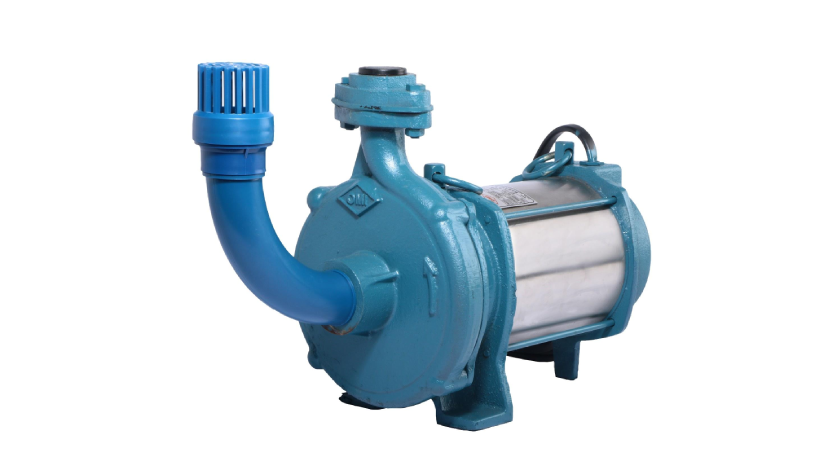

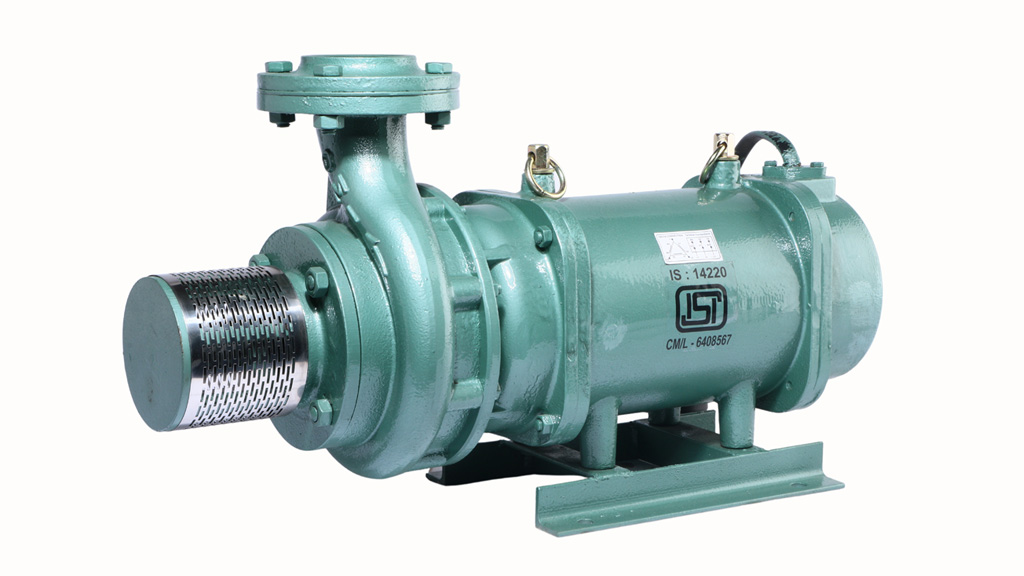

Horizontal Open Well Submersible Pumps
OMI Horizontal Openwell Submersible pump is a product easy to install, repair and dismantle with noiseless operations and minimal power consumption that dynamically balance the rotating parts. energy-efficient.These pumps are developed and manufactured by the continuous efforts and innovation of our R&D Team with prime experience in manufacturing pumps for the past 50 years.
| Power Range | 0.5 HP – 2 HP |
| Phase / Voltage Range |
Single-phase 200-240V, 50Hz, A.C Supply Three-phase, 350 -415V, 50Hz, A.C Supply |
| Maximum total head | 36 meter |
| Maximum flow rate | 10800 lph |
| Nominal outlet size in inches | 1”, 1.25”, 1.5”. ( 25, 32 , 40 mm) |
| Body | Stainless Steel 202 / 304 |
| Bush | Lead Tin Bronze 4 |
| Bearing | Stainless Steel with Carbon |
| Rotor | Aluminum Pressure Die Casting |
Applications
| Material of Construction of Motor | |
| Part Name | Material |
| Pump Casing/ Bracket | Cast Iron |
| Stator Shell | Stainless Steel 202 / 304 |
| Impeller | Cast Iron/ SS/ Noryl |
| Shaft | Stainless Steel 410 |
| Journal Bearings | Leaded Bronze / Carbon |
| Thrust Assembly | Leaded Bronze and Composites / Stainless Steel 420 with Graphite Carbon |
| Windings | Poly Wrap Copper Conductor Wires |
