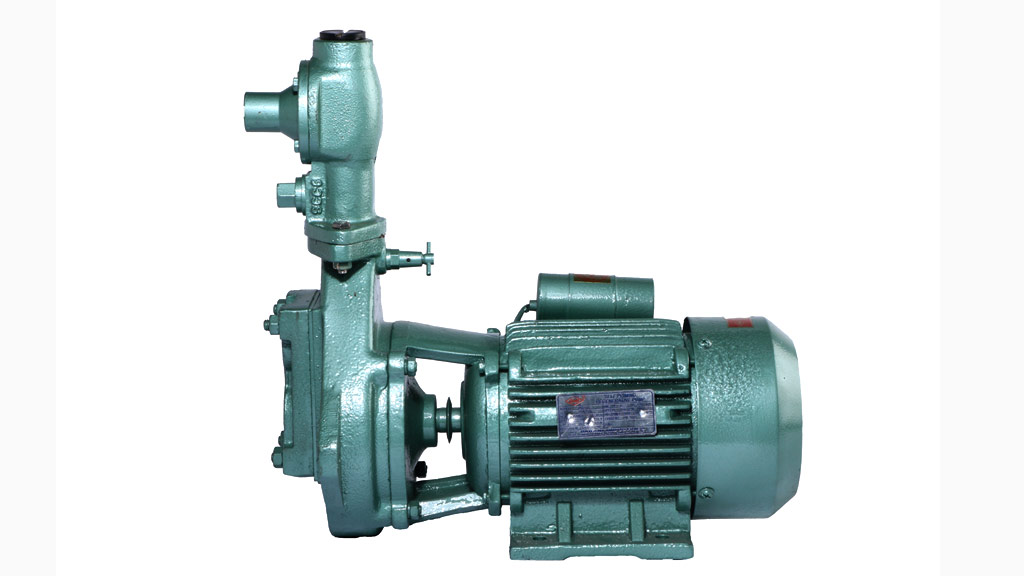

Centrifugal Jet Pumps

OMI Centrifugal Jet Pump is a product fitted with Thermal Overload Protector (TOP) to prevent burning with high grade ‘F’ class enameled copper wires that are suitable for wide Voltage fluctuations with minimal power consumption pumps that dynamically balance the rotating parts. These pumps are developed and manufactured by the continuous efforts and innovation of our R&D Team with prime experience in manufacturing pumps for the past 50 years.

Power Range 0.5HP- 1HP
Phase / Voltage Range Single-phase, 200-240 V, 50 Hz, AC Supply
Maximum total head 40 meters
Maximum flow rate 3000 lph
Nominal outlet size in inches (SxPxD)


(32x25x25,40x32x25 mm)

Body Cast Iron / Aluminum
Winding ‘F’ Class Insulation Copper Wire
Shaft Stainless Steel 410 / EN 8
Motor Protector Fitted With TOP
Bearing Double  Sealed Ball Bearing
Impeller Cast Iron / Noryl/ Brass

Good suction lift and operating pressure.

Fitted with Thermal Overload Protector (TOP) to prevent burning

Noiseless Operations.

High grade ‘F’ class enameled copper wires

Suitable for wide Voltage fluctuations.

Minimal power consumption

Can be easily dismantled and repaired.

Sturdy and Compact Design.

Pre Lubricated Double Sealed Precision Ball Bearing.

Dynamically balanced rotating parts.

Pressure Valve to adjust backpressure for optimized performance

Used in areas where the bore size is 3” and below.

Available in Horizontal and Vertical versions.

Deep Well Packer adaptor also available.

Used in high sand borewells.


Agriculture/ Irrigation


Small gardens

Small Industries

Multi Storied Building.

Material of Construction
Part Name Material
Pump Casing Cast Iron
Bracket/ Cover Cast Iron
Motor Frame Cast Iron / Aluminum
Impeller Cast Iron/ Brass / Noryl
Shaft Stainless Steel 410 / EN 8
Sealing Mechanical Seal (Carbon & Ceramic)
Jet Assembly Gun Metal
