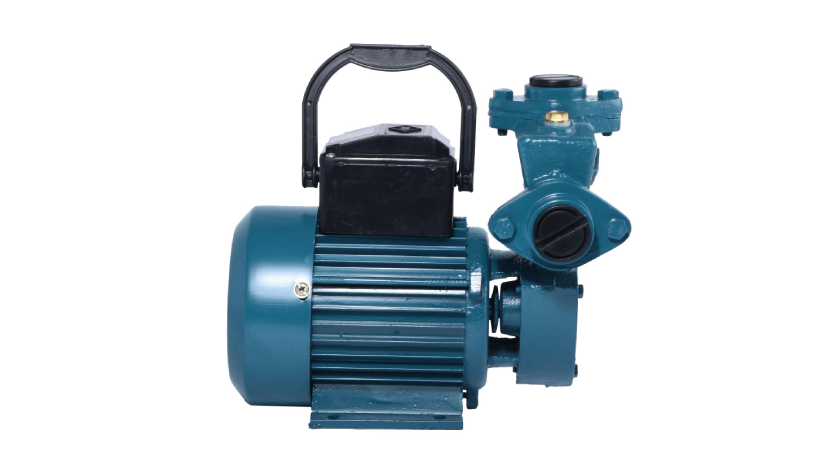

Regenrative Self Priming Mono Block Pumps Self Priming Series
OMI Regenrative Self-priming Pump is a product fitted with Thermal Overload Protector (TOP) to prevent burning with high-grade ‘F’ class enameled copper wires that are suitable for wide high-grade fluctuations. These pumps are developed and manufactured by the continuous efforts and innovation of our R&D Team with prime experience in manufacturing pumps for the past 50 years.
| Power Range | 0.5HP-1HP |
| Phase / Voltage Range | Single-phase, 200-240 V, 50 Hz, A.C Supply |
| Maximum total head | 50 meters |
| Maximum flow rate | 3600 lph |
| Suction & Delivery Sizes | 1”x 1” (25 x 25mm) |
| Body | Die-Cast / Aluminum/ Cast Iron |
| Winding | ‘F’ Class Insulation Copper Wire |
| Shaft | Stainless Steel 410 / EN 8 |
| Motor Protector | Fitted With TOP |
| Bearing | Pre Lubricated Double Sealed Ball Bearing |
| Impeller | Brass Forged Impeller |
| Strainer | Built-in Suction Strainer |
Applications
| Material of Construction | |
| Part Name | Material |
| Pump Casing/Bracket | Cast Iron |
| Motor Frame | Aluminum / Cast Iron |
| Impeller | Forged Brass |
| Shaft | Stainless Steel 410 / EN 8 |
| Sealing | Mechanical Seal (Carbon & Ceramic) |
