Peripheral Pumps / Non Self Priming

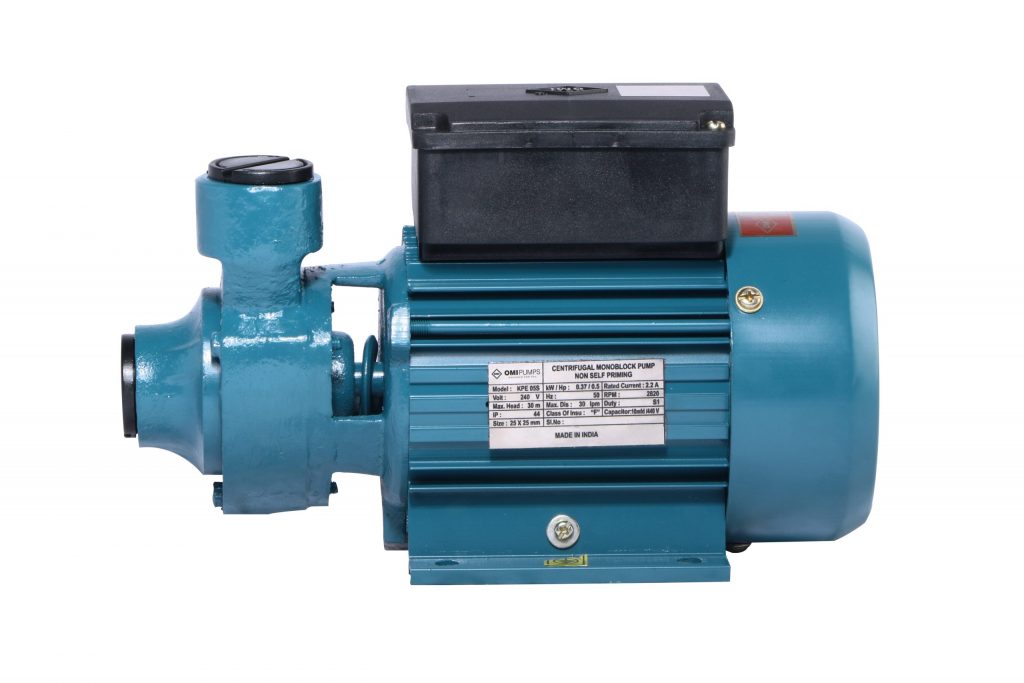

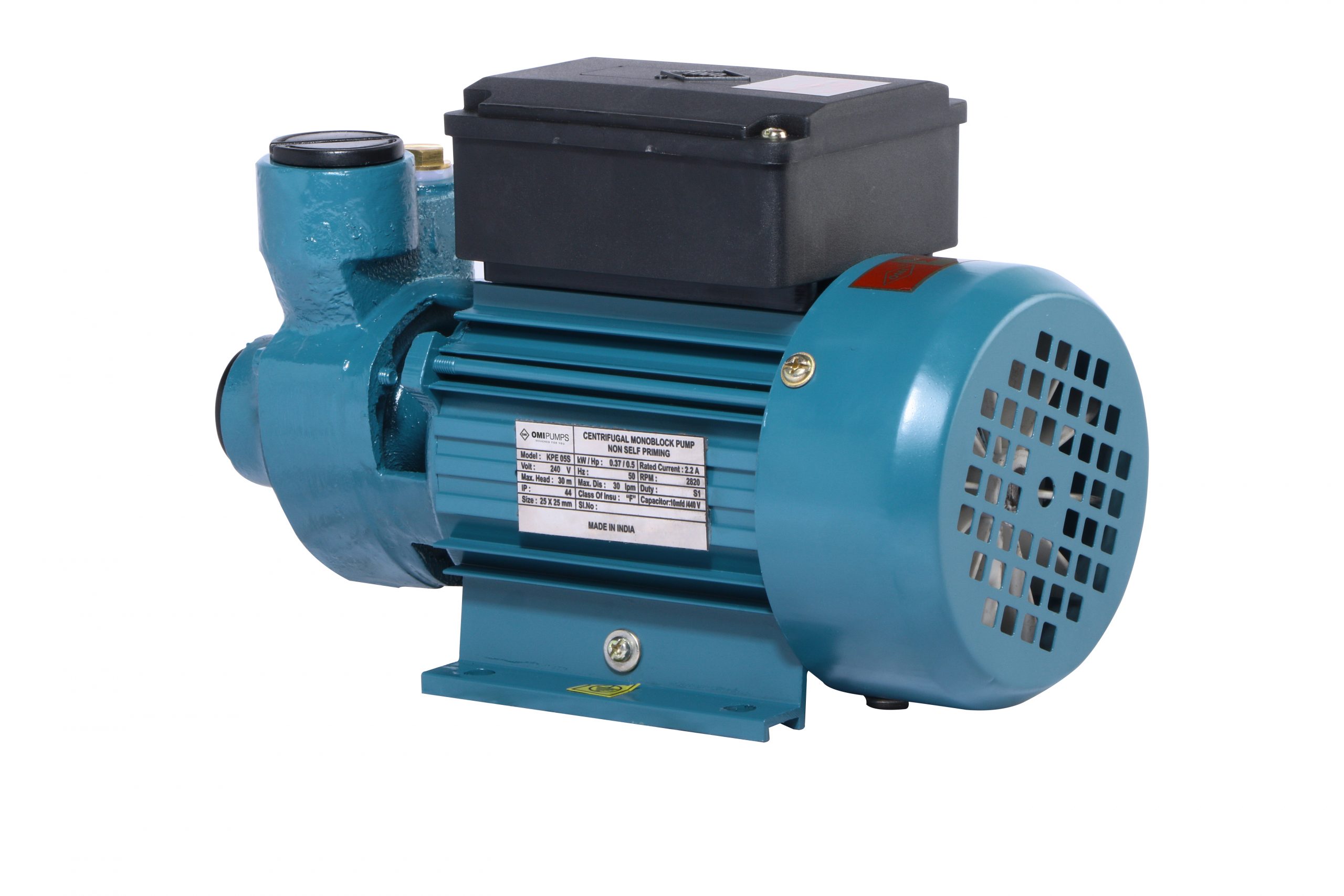

OMI Peripheral Pump is a product fitted with Thermal Overload Protector (TOP) to prevent burning with high grade ‘F’ class enameled copper wires that are suitable for wide voltage fluctuations. These pumps are developed and manufactured by the continuous efforts and innovation of our R&D Team with prime experience in manufacturing pumps for the past 50 years.
| Power Range | 0.5HP-1HP |
| Phase / Voltage Range | Single-phase, 200-240 V, 50 Hz, A.C Supply |
| Maximum total head | 50 meters |
| Maximum flow rate | 3000 lph |
| Suction & Delivery Sizes | 0.75”x0.75”,1”x 1” (20 x 20 , 25 x 25 mm) |
| Body | Die-Cast / Extruded TEFC |
| Insert | Brass/ SS insert |
| Winding | ‘F’ Class Insulation Copper Wire |
| Shaft | Stainless Steel 410 |
| Motor Protector | Fitted With TOP |
| Bearing | Pre Lubricated Double Sealed Ball Bearing |
| Impeller | Brass Forged Impeller |
60 Hz design is also available.
Applications
| Part Name | Material |
| Pump Casing/Bracket | Cast Iron |
| Motor Frame | Die-Cast / Aluminum |
| Impeller | Forged Brass |
| Shaft | Stainless Steel 410 / EN 8 |
| Sealing | Mechanical Seal (Carbon & Ceramic) |
