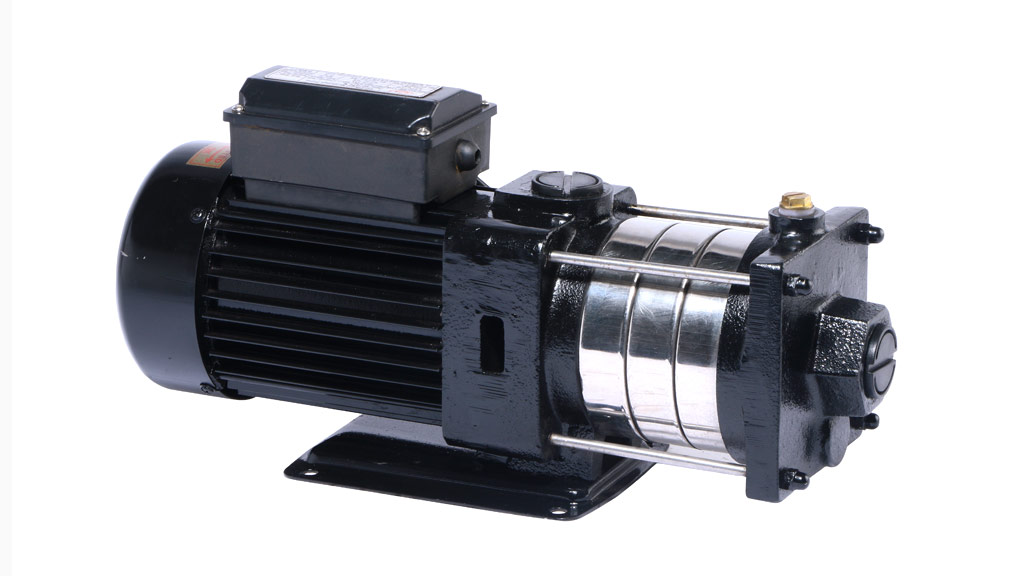

Horizontal Multistage Pumps

OMI Horizontal Multi-Stage pump is a product fitted with Thermal Overload Protector (TOP) to prevent burning with high grade ‘F’ class enameled copper wires that are suitable for wide Voltage fluctuations with minimal power consumption pumps that dynamically balance the rotating parts. These pumps are developed and manufactured by the continuous efforts and innovation of our R&D Team with prime experience in manufacturing pumps for the past 50 years.

Power Range  0.5 HP – 2 HP
Phase / Voltage Range Single-phase 200 / 240 V, A.C Supply, (CSR)
Maximum total head 55 meters
Maximum flow rate 9600 lph
Body Aluminum
Winding ‘F’ Class Insulation Copper Wire
Shaft Stainless Steel /410 / 304/ 316
Motor Protector Fitted With TOP
Bearing Double  Sealed Ball Bearing
Impeller Stainless Steel 304/316
Casing Stainless Steel 304/316

Fitted with Thermal Overload Protector (TOP) to prevent burning.

Stainless Steel Impeller and Diffusers.

Stainless Steel Motor Shaft

Maintenance Free

Works with suitable pressure tanks and control switches.

Noiseless Operations

High grade ‘F’ class enameled copper wires

Suitable for wide Voltage fluctuations.

Minimal power consumption

Can be easily dismantled and repaired.

Sturdy and Compact Design.

Pre Lubricated Double Sealed Precision Ball Bearing.

Dynamically balanced rotating parts.

Corrosion Resistant

The pump is fitted with a highly durable mechanical seal.

Automatic ON & OFF of pumps while opening & closing of taps.

Applications

Pressure Boosting.

Home

Small gardens

Small Industries.

Showers

High Rise Buildings.

Material of Construction of Pump
Part Name Material
Pump Casing/ Bracket Cast Iron
Impeller / Diffuser Stainless Steel 304/316
Motor Frame Aluminum
Shaft Stainless Steel 410/304/316
Mechanical Seal Carbon & Ceramic
Base Plate Mild Steel
